Three become one: How supercomputers work together for fusion research

Understanding what happens during plasma fusion is one of the major research goals in relation to the energy transition. Plasma fusion, a process in which atomic nuclei fuse at temperatures of around 100 million degrees Celsius, could be an almost inexhaustible source of energy free from the dangers of nuclear fission. Before fusion power plants can become a reality, many problems still need to be solved. However, the construction even of test facilities such as the ITER tokamak in France costs several billion euros. Research into nuclear fusion therefore relies on simulations that can carry out these experiments using realistic models.

Advancing such complex simulations demands an interdisciplinary team that combines expertise in high-performance computing, algorithm design, mathematical modeling, and physics. Under the leadership of Dirk Pflueger, Professor of Scientific Computing at the University of Stuttgart, the large DFG-funded project started back in 2013 together with colleagues from the University of Bonn, TU Munich, and the Max Planck Institute for Plasma Physics in Garching.

The GENE simulation code developed at the Max Planck Institute for Plasma Physics enables the team to simulate turbulence in magnetized plasmas. However, it has so far been possible to carry only out a tiny part of a complete simulation because even supercomputers are not able to process such enormous amounts of data. That would exceed their computing and storage capacity. However, mathematical methods can help to simplify the problem and thus reduce the amount of data without compromising the accuracy of the simulation.

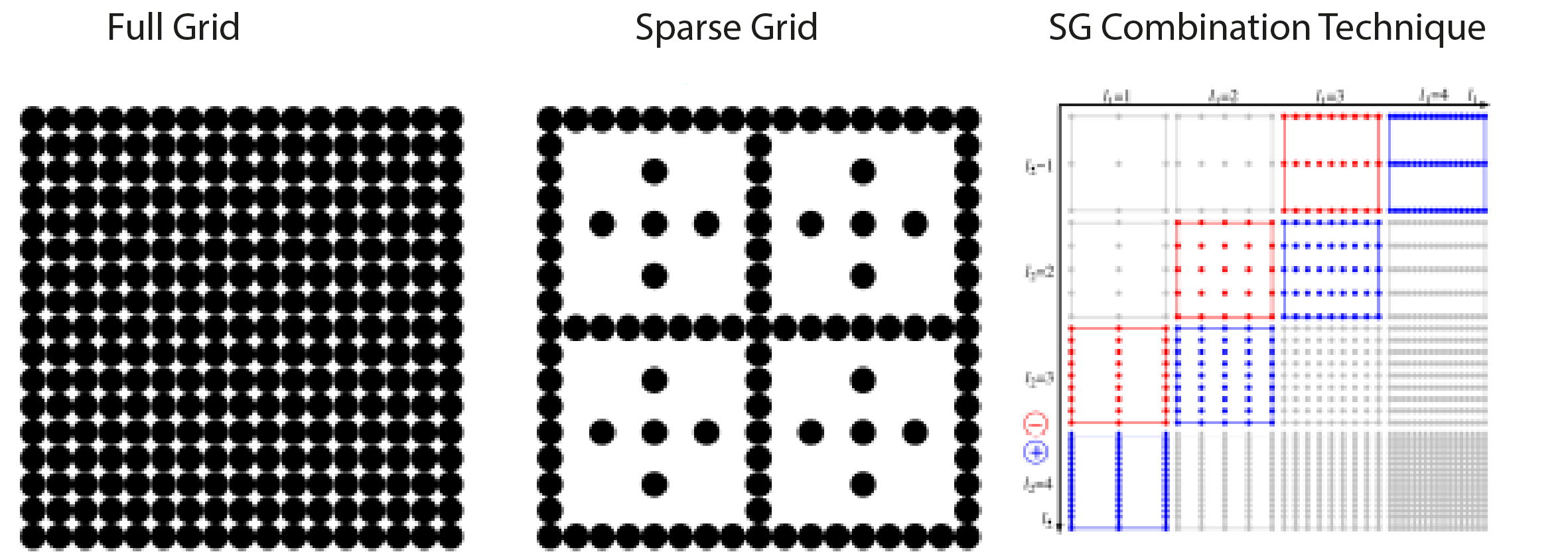

The researchers therefore applied a new discretization method, sparse grid technology, a model reduction approach for high-dimensional problems. Pflueger has already dealt with this numerical approach in his own dissertation and carried out important preliminary work. With several generations of doctoral students, he has further developed the method that makes it possible to mitigate the curse of dimensionality.

The scientists also set out to run the first simulation operating simultaneously on multiple supercomputers rather than a single one. To do this, they need a codebase that not only performs the simulation but also coordinates the interaction between the machines. “This poses a challenge for high-performance computing systems,” says Pflueger. “It requires careful consideration of how data is transferred and how computational load is balanced.”

The scientists in Pflueger’s team initially set up an open source code to enable the simulation to be distributed and executed on the various computing systems. Theresa Pollinger then made the breakthrough. She built on this preliminary work as part of her doctoral degree studies with Pflueger and used it to develop the DisCoTec software. DisCoTec uses sparse grid technology and distributes the simulation to the various supercomputers.

“I considered how to divide the work among the machines so that only minimal data exchange would be required. Because only a tiny fraction of the vast amount of data needs to be exchanged.” Her work was not just about writing code and testing code. “We examined questions such as: Does the performance match our expectations? Are the results still accurate? How can we make it faster? And then we started all over again,” says Pollinger. She also improved the underlying numerical method and developed new, suitable algorithms for parallelization, both within the supercomputers and beyond. “Only when the full capacity of the machine is used does it make sense to distribute the simulation further,” says Pollinger.

An experiment was designed to prove that simulations distributed across several supercomputers are actually possible. They partnered with the computing centers hosting the supercomputers “Hawk” at the High Performance Computing Center Stuttgart, “SuperMUC-NG” at the Leibniz Supercomputing Center in Garching near Munich, and “JUWELS” at Forschungszentrum Juelich. Pollinger encountered some rather mundane problems in the process. For example, the security measures at the computing centers do not permit data to be exchanged directly between computing nodes over the Internet. In addition, moving data around (i.e., the internal communication of computers) is now more expensive than computing itself.

“I really put the IT support teams at the major computing centers through their paces.” There were often special requests such as: ‘Could we repurpose your file transfer system for part of our simulation?’ or: ‘Can you give me your whole machine for exactly these three hours in a few months’ time? I think I was a bit annoying, and they must have thought: ‘Oh, another email from her’,” says Pollinger. Nevertheless, the support staff were highly supportive in making her research possible, and Pollinger is particularly grateful for this.

She eventually developed a six-dimensional geometric configuration of the workflow that resembles a star. This means that the computers do not have to communicate with each other as much. By optimizing load distribution, memory management, and parallel file writing, Pollinger was able to use computing resources much more efficiently.

The overlapping colored circles indicate where data exchange occurs. So where blue and pink or pink and green meet, communication must take place. Most don’t need to be communicated because they are contiguous areas on the same machine and do not have to be sent over the Internet,” says Pollinger.

The scientists have thus achieved a major breakthrough: They overcame the curse of dimensionality for their application. The concept of combining methods for reducing the problem and distributing the tasks across several supercomputers enables simulations on scales that would otherwise be impossible. “To my knowledge, this is the first time that someone has managed to run such a high-level simulation on several supercomputers at the same time,” says Pflueger.

Even though it was not yet a full plasma simulation but rather a somewhat simplified version, it was still large enough to simulate a tokamak. The scientists’ work shows that it is fundamentally possible to use several supercomputers as a coherent system to simulate complex processes. The results are relevant not only for plasma physics but also for other scientific disciplines such as finance, earthquake simulation, astrophysics, quantum chemistry, and climate research.

Pollinger et al., (2025). DisCoTec: Distributed higher-dimensional HPC simulations with the sparse grid combination technique. Journal of Open Source Software, 10(106), 7018, https://doi.org/10.21105/joss.07018

Pollinger, A. V. Craen, P. Offenhaeuser and D. Pflueger, “Realizing Joint Extreme-Scale Simulations on Multiple Supercomputers-Two Superfacility Case Studies”, SC24: International Conference for High Performance Computing, Networking, Storage and Analysis, Atlanta, GA, USA, 2024, pp. 1–17, doi: 10.1109/SC41406.2024.00104.

Theresa Pollinger, Alexander Van Craen, Christoph Niethammer, Marcel Breyer, and Dirk Pflueger. 2023. Leveraging the Compute Power of Two HPC Systems for Higher-Dimensional Grid-Based Simulations with the Widely-Distributed Sparse Grid Combination Technique. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis (SC ’23). Association for Computing Machinery, New York, NY, USA, Article 84, 1–14. https://doi.org/10.1145/3581784.3607036

The aim of the program was to develop numerical methods that would enable large-scale simulations such as plasma fusion on supercomputers. In 2012, Pflueger began his appointment as the first SimTech Junior Professor for Scientific Computing at the University of Stuttgart. He has since advanced beyond his junior professorship. His research focuses on scientific computing, high-performance computing, high-dimensional approximation, and numerical machine learning.

As part of her research, she explores the interplay among simulations, high-performance computing hardware, communication networks, algorithms, numerical models, predictive methods, and software along with their underlying concepts.
